Explorer

Investigate signals through direct graphical comparison.

The Explorer enables rapid analysis and triage of Segments by performing graphical and statistical comparison between different subsets of Logs over different time windows and/or filters.

Accessing Explorer

You can access the Explorer in three ways:

1. From the main navigation: Click "Explorer" in the left sidebar

2. From an Insight: Click the "View in Explorer" button on any Insight card

3. From the Logs page: Apply filters to your logs, then click "View in Explorer" in the top-right corner

When accessed from an Insight or Logs page, the Explorer will pre-populate with your current filters.

There are three main types of exploration afforded by the Explorer:

• Single Segment: Quickly see all Metrics for a given time window and single filter on the Logs. This allows for an aggregate view of all Metrics.

• Segment Comparison: Compare two different filters on the Logs or a filter and its compliment across the same time window. This allows for comparison of Metrics between filters or between a filters and the rest of the Log data.

• Temporal Comparison: Compare a single filter across two adjacent time windows. This allows for a Metric comparison of before/after for a given Segment.

Single Segment

View all Metrics for a given filter on the Logs in a time window. The filter can be optionally saved as Segment to be published to future Segment Dashboards as part of the DBNL Data Pipeline.

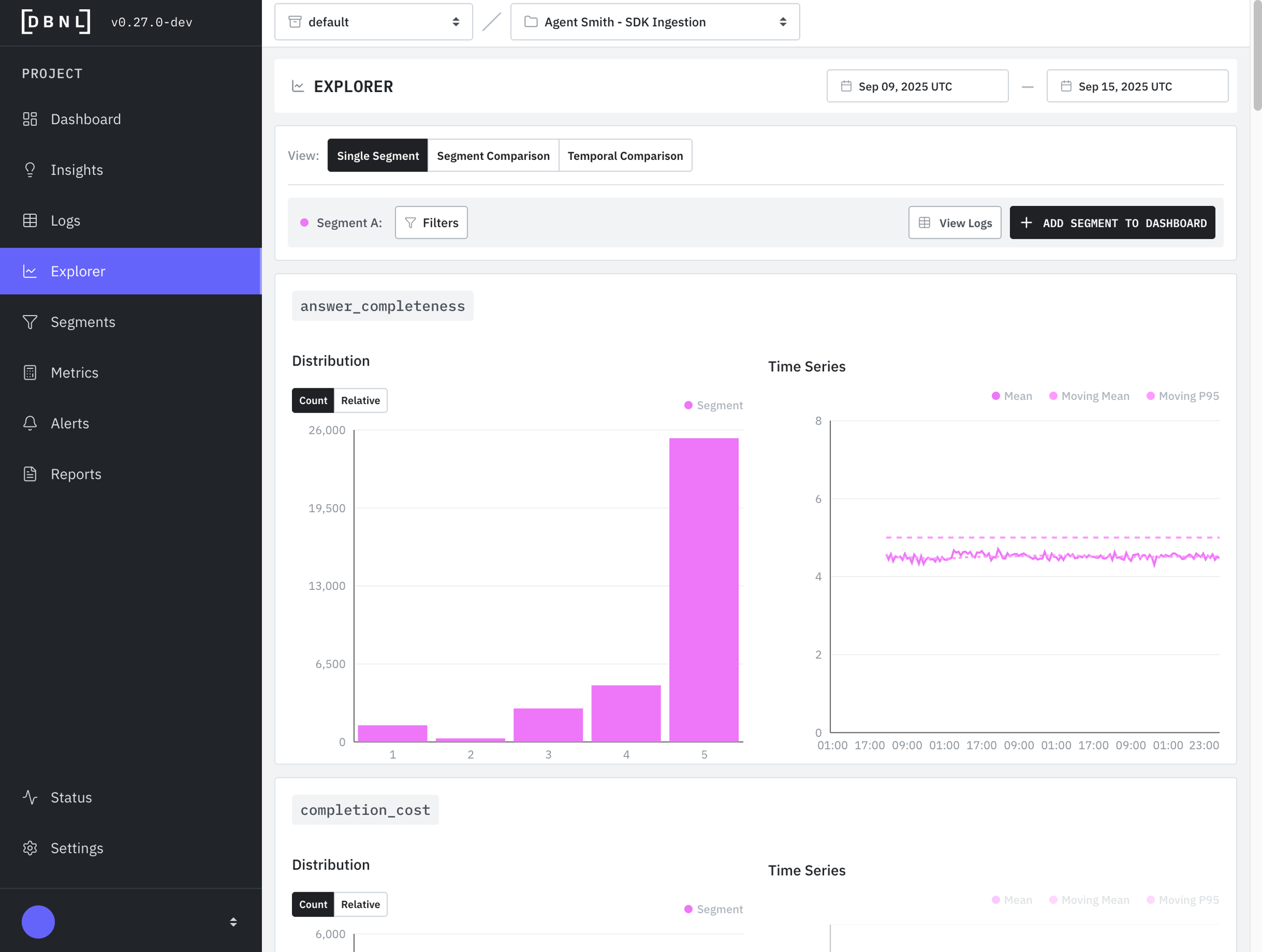

The Single Segment Explorer page allows for quickly viewing all metrics for a filter within a time window.

Segment Comparison

Compare two different filters on the Logs or a filter and its compliment across the same time window. This allows for comparison of Metrics between filters or between a filters and the rest of the Log data. Either of these filters can be optionally saved as Segments to be published to future Segment Dashboards as part of the DBNL Data Pipeline.

The Segment Comparison Explorer page allows for quick comparison of two filters across a single time window.

Temporal Comparison

Compare a single filter across two adjacent time windows. This allows for a Metric comparison of before/after for a given Segment.

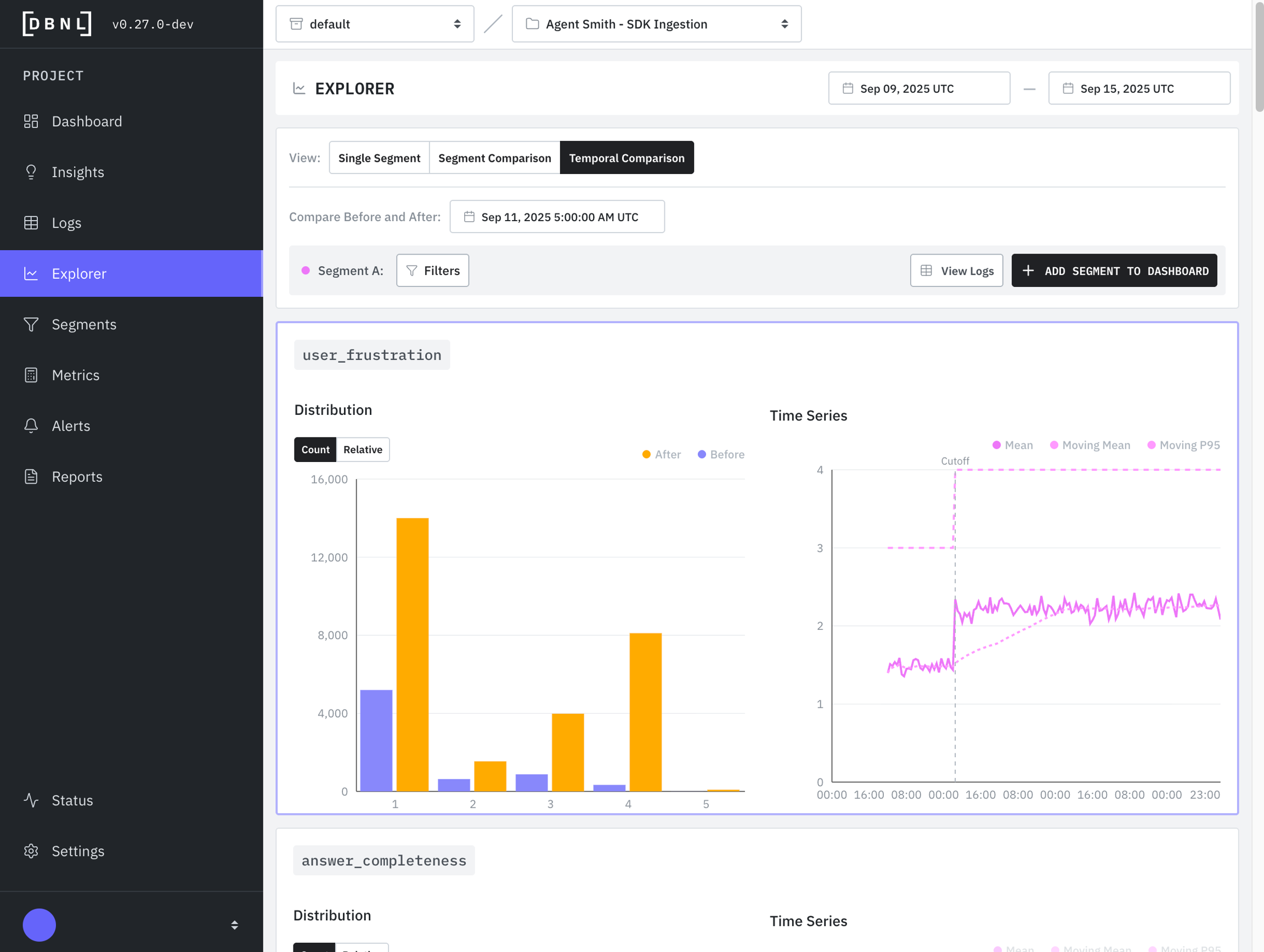

The Temporal Comparison Explorer page allows for quick comparison of a single filter across two adjacent time windows.
