# Explorer

The Explorer enables rapid analysis and triage of [Segments](/v0.26.x/workflow/segments.md) by performing graphical and statistical comparison between different subsets of [Logs](/v0.26.x/workflow/logs.md) over different time windows and/or filters.

There are three main types of exploration afforded by the Explorer:

* [**Single Segment**](#single-segment): Quickly see all [Metrics](/v0.26.x/workflow/metrics.md) for a given time window and single filter on the [Logs](/v0.26.x/workflow/logs.md). This allows for an aggregate view of all Metrics.
* [**Segment Comparison**](#segment-comparison): Compare two different filters on the [Logs](/v0.26.x/workflow/logs.md) or a filter and its compliment across the same time window. This allows for comparison of [Metrics](/v0.26.x/workflow/metrics.md) between filters or between a filters and the rest of the Log data.
* [**Temporal Comparison**](#temporal-comparison)**:** Compare a single filter across two adjacent time windows. This allows for a [Metric](/v0.26.x/workflow/metrics.md) comparison of before/after for a given [Segment](/v0.26.x/workflow/segments.md).

### Single Segment

View all [Metrics](/v0.26.x/workflow/metrics.md) for a given filter on the [Logs](/v0.26.x/workflow/logs.md) in a time window. The filter can be optionally saved as [Segment](/v0.26.x/workflow/segments.md) to be published to future [Segment Dashboards](/v0.26.x/workflow/dashboards.md#segments-dashboard) as part of the [DBNL Data Pipeline](/v0.26.x/configuration/data-pipeline.md).

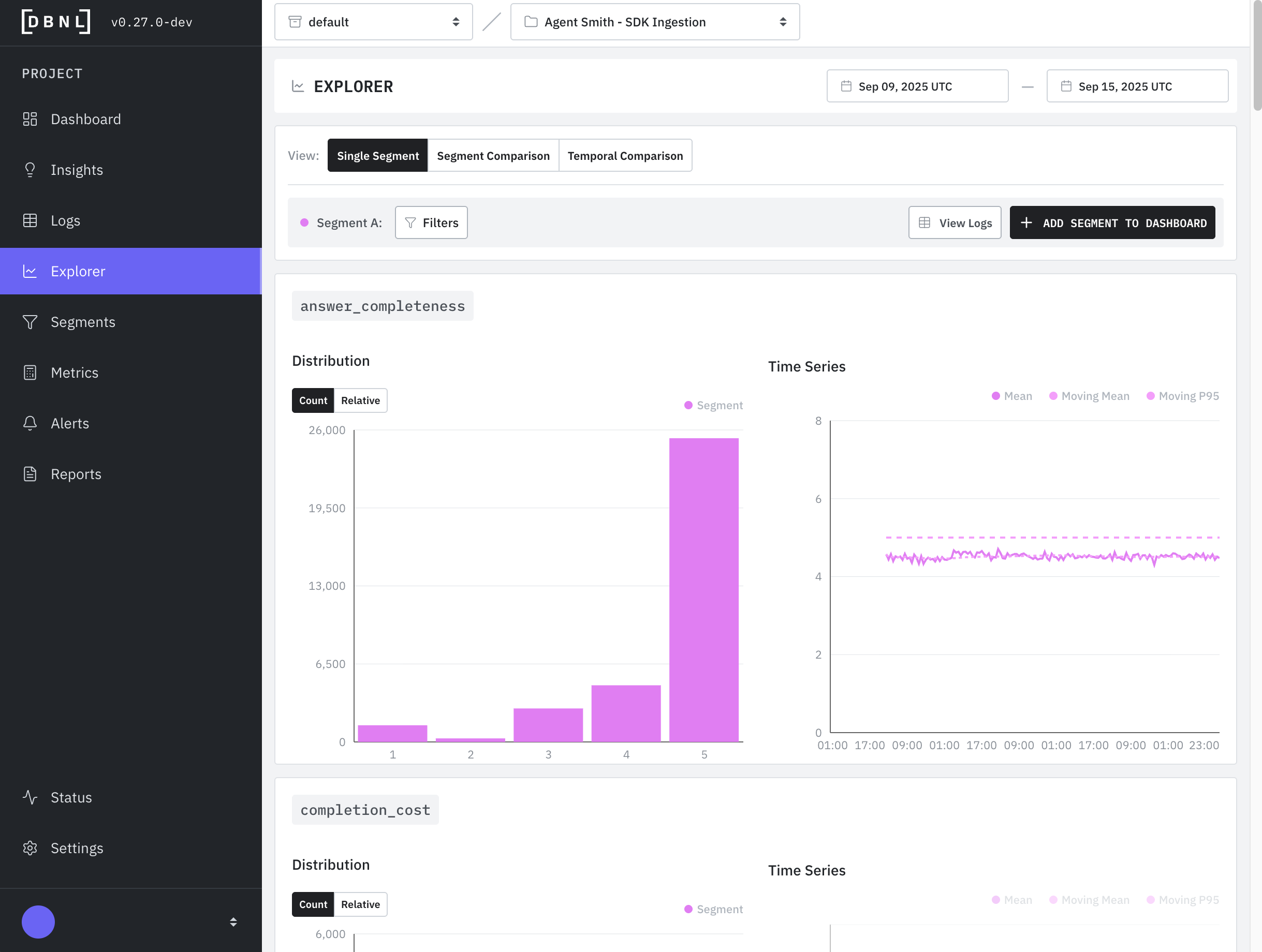

<figure><img src="/files/uOtq45O1HzqsmWou2v2T" alt=""><figcaption><p>The Single Segment Explorer page allows for quickly viewing all metrics for a filter within a time window.</p></figcaption></figure>

### Segment Comparison

Compare two different filters on the [Logs](/v0.26.x/workflow/logs.md) or a filter and its compliment across the same time window. This allows for comparison of [Metrics](/v0.26.x/workflow/metrics.md) between filters or between a filters and the rest of the Log data. Either of these filters can be optionally saved as [Segments](/v0.26.x/workflow/segments.md) to be published to future [Segment Dashboards](/v0.26.x/workflow/dashboards.md#segments-dashboard) as part of the [DBNL Data Pipeline](/v0.26.x/configuration/data-pipeline.md).

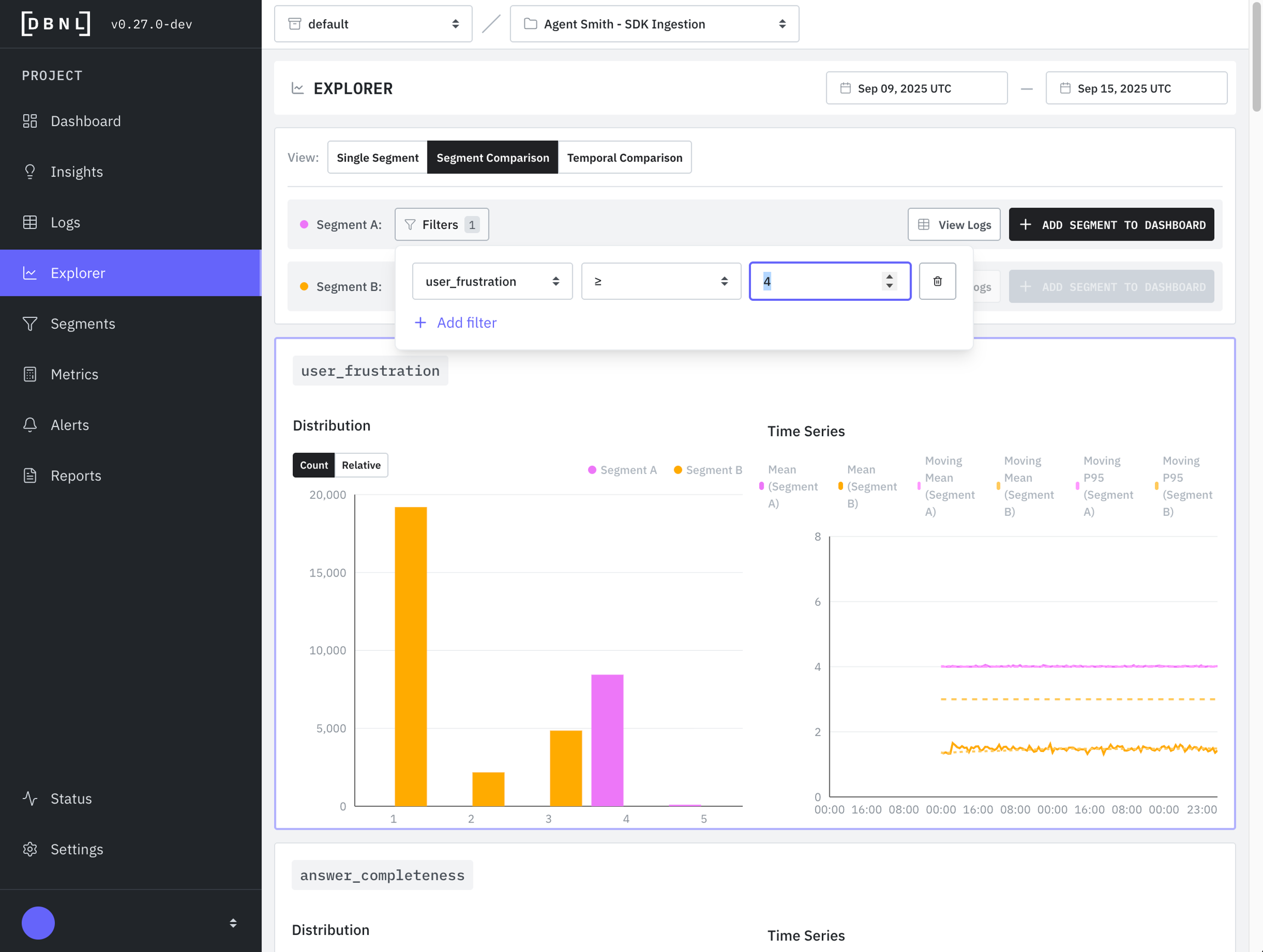

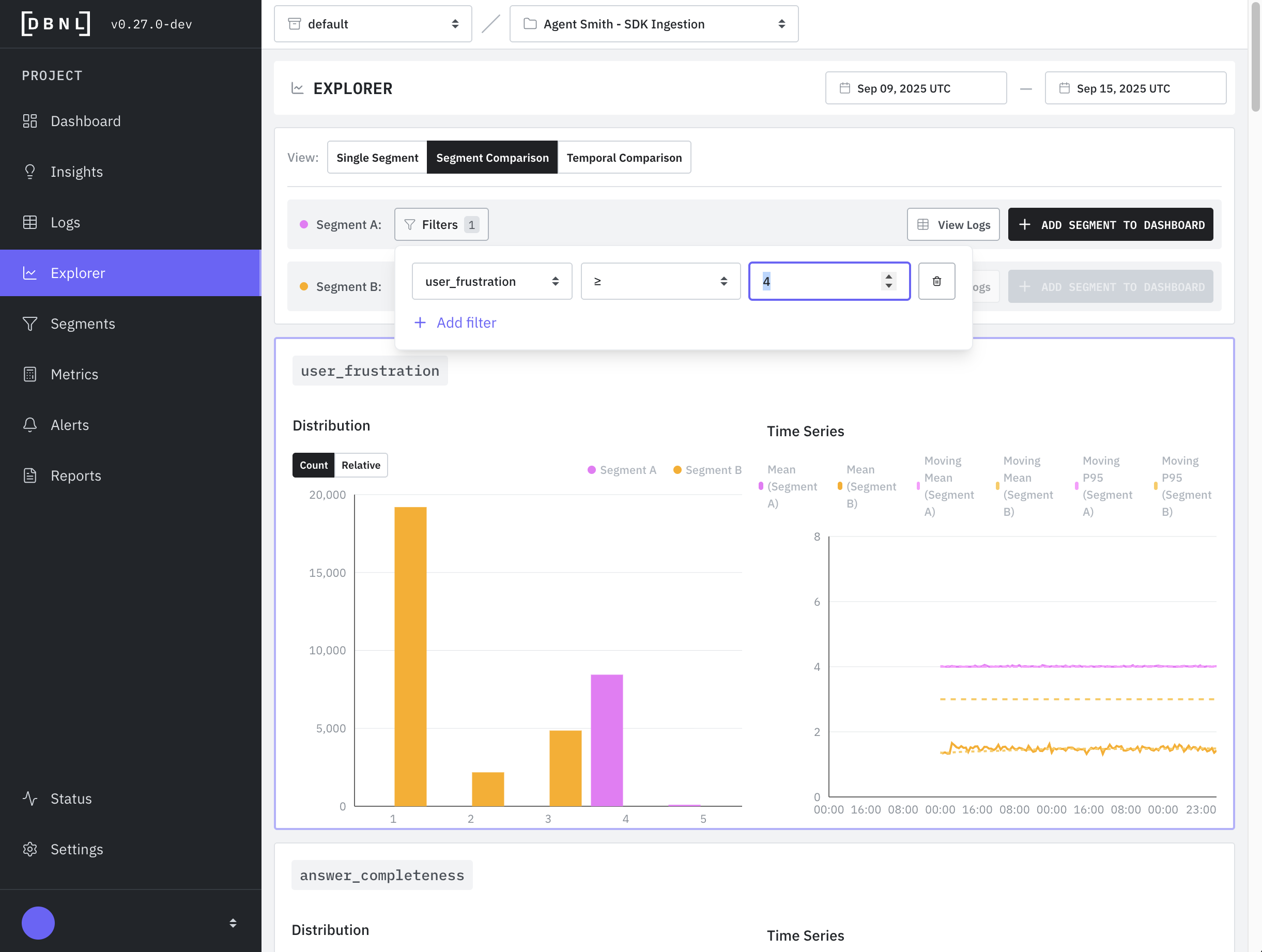

<figure><img src="/files/CvIgRwiuyrAhjXksT0e2" alt=""><figcaption><p>The Segment Comparison Explorer page allows for quick comparison of two filters across a single time window.</p></figcaption></figure>

### Temporal Comparison

Compare a single filter across two adjacent time windows. This allows for a [Metric](/v0.26.x/workflow/metrics.md) comparison of before/after for a given [Segment](/v0.26.x/workflow/segments.md).

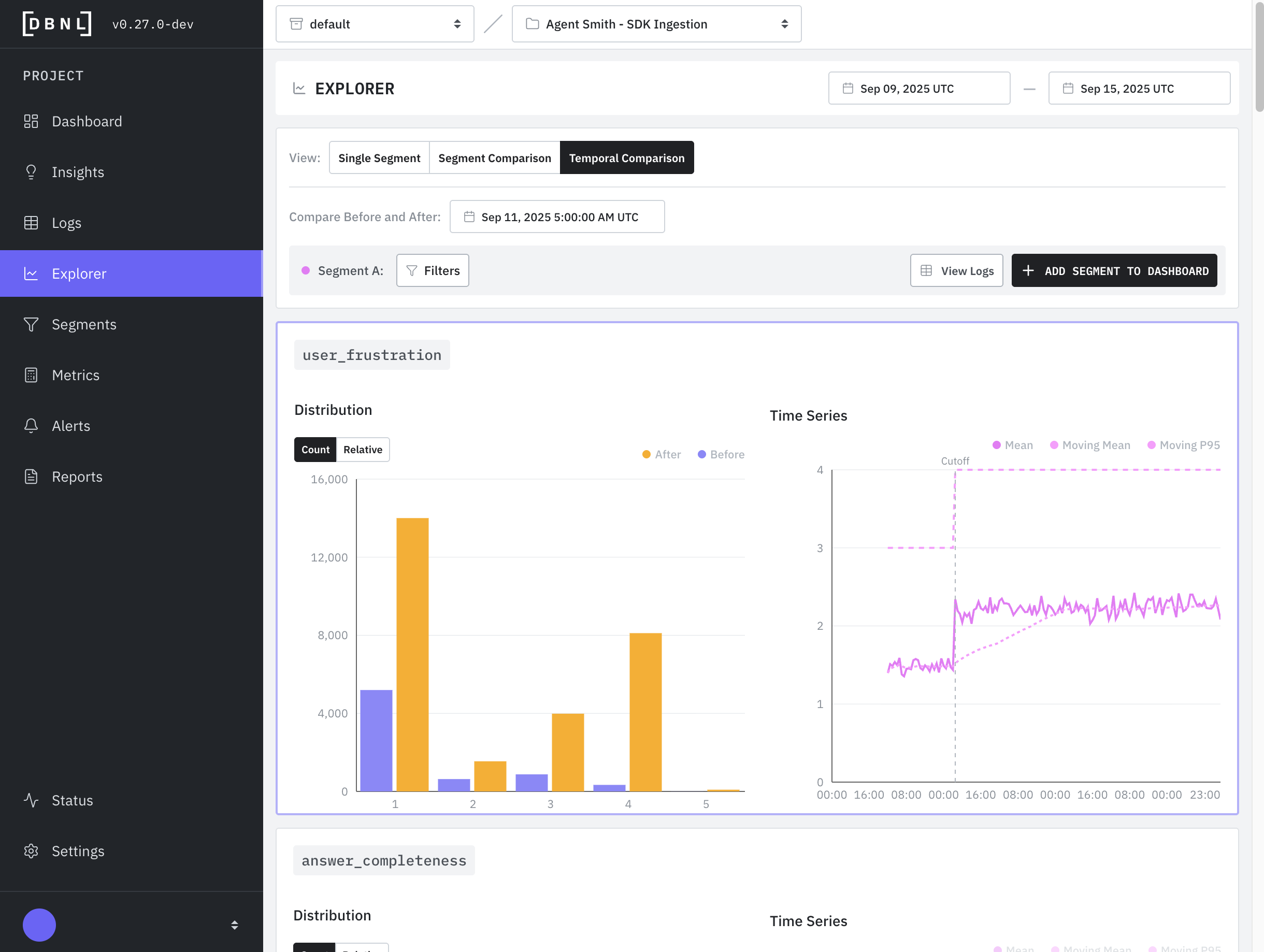

<figure><img src="/files/FFxNoLV6qYwlDKd0c4w4" alt=""><figcaption><p>The Temporal Comparison Explorer page allows for quick comparison of a single filter across two adjacent time windows.</p></figcaption></figure>
